Featured Ranges:

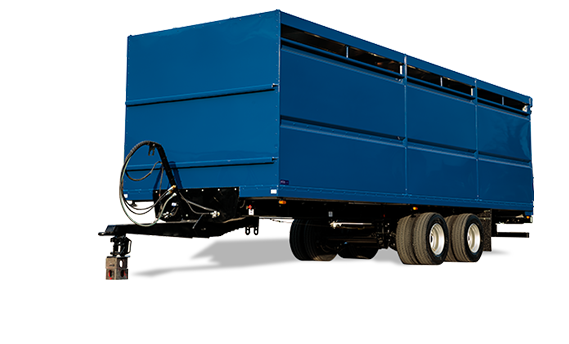

Country Line Single Deck

Built to the same high standards as our popular Professional Single Deck container for commercial hauliers, this tractor drawn unit is versatile, fuel-efficient and highly stable.

Standard features include an adjustable sprung drawbar for increased stability and reduced tractor wear and tear, commercial brakes, high-speed axles and multi-leaf suspension.

Key Features

  • Aerodynamic, clean-sided modular design
  • Anti-slip alloy floor welded and watertight
  • Light, strong monocoque structure gives greatest legal load capacity of any tractor drawn
  • Slurry tank as standard

    Alternatives

    • Country Line Two Deck
    • P-Line Single Deck
    • Professional Single Deck

    Length

    From 4.87m (16') to 10.36m (34')

    Internal Height

    2.13m (7')

    External Width

    2.55m (8'4")



    Standard Features

    • All alloy rear loading gates using horizontal design for safety
    • Alloy slurry tank
    • All steel components hot-dip galvanised or zinc plated
    • Anti-slip alloy floor
    • Axle: 10 stud commercial
    • Brakes: Commercial cam brakes operated by hydraulics
    • Capacity: 14 tonnes/16 tonnes/18 tonnes
    • Draw Beam: Sprung draw bar (increased ride stability)
    • Easy clean design
    • Finish: Shot blasted and painted all over using two pack Nexa paint
    • Fixed alloy internal dividing gates
    • Fixed floors welded all round
    • Hand Brake: Mechanical
    • High-grade alloy monocoque construction
    • LED marker lights to comply with legal requirements
    • Lights: Marker lights to comply with legal requirements
    • Matt black rear ramp to prevent startling through sun glare
    • Nexa Autocolor Turbo Plus 2-pack paint system in one colour of your choice
    • One gate per deck supplied to suit each 3.66m length of transporter
    • One light per pen externally switched
    • Open ventilation to top deck
    • Spring-assisted alloy-planked rear door with smooth exterior
    • Stainless steel hinge pins
    • Strobe light to rear
    • Suspension: Commercial Multi leaf springs
    • Towing Eye: Ø50 Heavy duty eye
    • Unique internal width of 2.53m enables larger animals to stand crossways
    • Wheels: 455 x 45 x 19.5 Super single - various options available

    Extra Options

    • 555/45 - 17 Tyres - off road flotation tyre for up to 50mph tractor road use
    • ABS braking systems
    • Air Brakes
    • Air over hydraulics braking
    • External tie rings
    • Extra Groom’s door to side of container
    • Extra inspection door
    • Extra internal lights
    • Extra large inspection door
    • Extra LED top marker lights across rear
    • Extra light options
    • Ferry lashing rings
    • Fixed gates with 500mm side partitions for increased operator safety (for dual purpose)
    • Flaps closable from inside
    • Galvanised chassis option
    • Houghton-Parkhouse, colour coded pressed alloy side guards
    • Inspection door
    • Insulated roof
    • Internal/external tie rings
    • Moveable cattle gates
    • Moving cattle gate (for dual purpose)
    • Pull out step to inspection door
    • Rear loading lights - LED or Halogen
    • Spare wheel carrier and wheel
    • Stop/indicators to rear LED Hamburger
    • Towing eyes
    • Transporter painted in one colour basecoat and lacquer giving a metallic finish using Nexa Autocolor Turbo Plus paint system
    • Transporter painted in two colors using Nexa Autocolour Turbo Plus paint system
    • Tri axle options
    • (N.B. - Some features subject to compatibility)
